Knowledge Hub: Explore the Power of UV and Black Light Flashlights

A 365nm UV flashlight is a powerful tool used in a variety of industries for its ability to reveal hidden details that are invisible under normal light. From leak detection in plumbing to forensic investigations at crime scenes, these flashlights can help professionals and enthusiasts identify issues that would otherwise go unnoticed. In this article, we’ll guide you through the process of using a 365nm UV flashlight for two popular applications: leak detection and forensics.

What is a 365nm UV Flashlight?

Before diving into the uses, let’s quickly recap what a 365nm UV flashlight is. 365nm UV flashlights emit ultraviolet light at a wavelength of 365 nanometers. This wavelength is particularly effective for revealing fluorescence in certain materials. While the human eye cannot see UV light, many substances will glow or fluoresce when exposed to it, making it easier to detect hidden issues.

The following are some typical uses for a 365nm UV flashlight:

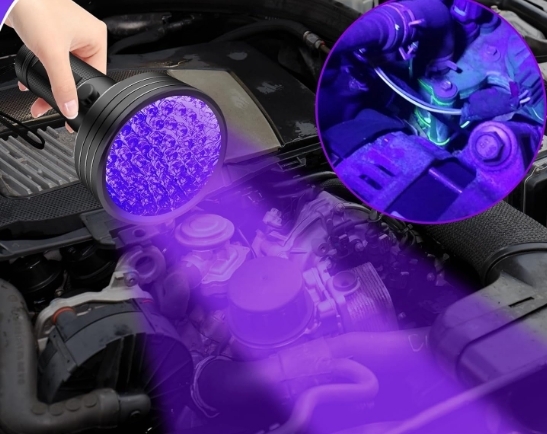

1. Using a 365nm UV Flashlight for Leak Detection

Leak detection is one of the most popular uses for a 365nm UV flashlight, especially in plumbing, automotive, and HVAC systems. Here’s how it works:

Step-by-Step Process for Leak Detection

1. Prepare the Area:

   • Turn off the lights: To ensure the UV light is visible, turn off the lights in the area you're inspecting.
   • Apply UV Dye: For optimal results, add a UV dye to the fluid you suspect is leaking (e.g., coolant or refrigerant). This dye will fluoresce when exposed to the 365nm UV light, making the leak much easier to spot.

2. Turn on the 365nm UV Flashlight:

   • Hold the flashlight about 6–12 inches away from the surface you're inspecting for best results.
   • Sweep the flashlight across pipes, hoses, seals, and other areas where leaks are suspected.

3. Observe the Fluorescence:

   • When the UV light hits the dyed fluid, you’ll see a glowing effect, which indicates the presence of a leak.
   • Tip: For leaks in darker, hard-to-reach places, consider using a UV flashlight with a narrow beam for better precision.

4. Mark the Leak:

   • Once the leak is detected, mark it with a piece of chalk or a marker. You can then proceed to repair the leak.

Benefits of Using a 365nm UV Flashlight for Leak Detection

• Efficiency: Detect leaks that are invisible to the naked eye.
• Non-invasive: No need for extensive dismantling or invasive methods.
• Time-saving: Quickly locate the source of the leak without wasting time on trial and error.

Common Applications for Leak Detection

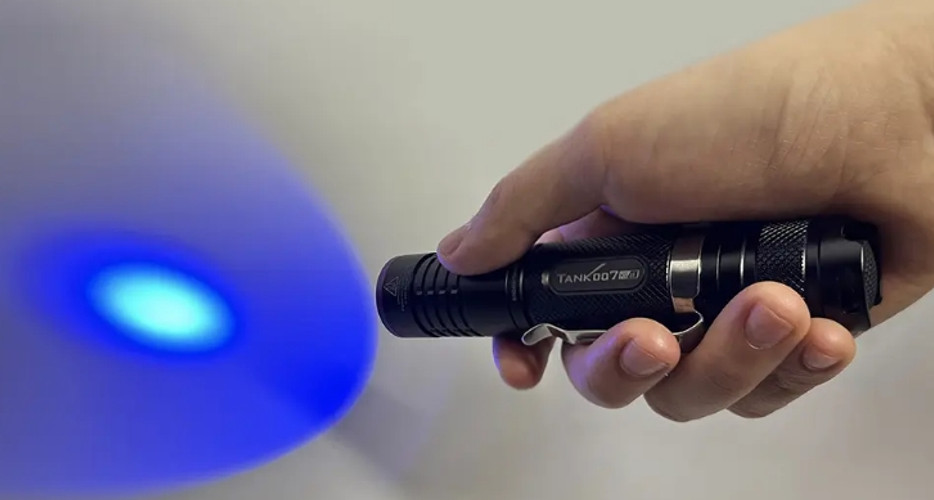

2. Using a 365nm UV Flashlight for Forensic Applications

In forensics, a 365nm UV flashlight is invaluable for detecting evidence at crime scenes. Many bodily fluids, such as blood, semen, and saliva, contain substances that fluoresce under UV light. Here’s how to use a 365nm UV flashlight effectively for forensic applications:

Step-by-Step Process for Forensic Investigations

1. Prepare the Scene:

   • Ensure darkness: Turn off all lights in the area to enhance the visibility of the fluorescence.
   • Clean the Area: Clear debris or dirt from the surface where you’ll be scanning, as these can interfere with the UV light’s effectiveness.

2. Activate the 365nm UV Flashlight:

   • Hold the flashlight over the area you want to inspect, making sure to keep the beam directed at specific sections of the scene.
   • For better results, you may need to adjust the flashlight to focus on specific areas, such as floors, walls, or clothing.

3. Look for Fluorescent Evidence:

   • Fluorescent stains will appear as glowing spots when exposed to UV light. Blood, urine, semen, and other bodily fluids often have a distinctive glow under 365nm UV light.
   • Tip: Different types of evidence may glow in different colors depending on the fluid and the surface.

4. Photograph the Evidence:

   • For accurate documentation, take photos of the fluorescent evidence for further analysis and reporting.
   • Use a camera with a UV filter to capture the fluorescence in detail.

5. Mark and Collect Evidence:

   • Once you identify potential evidence, mark it, and carefully collect the samples for analysis in the lab.

Benefits of Using a 365nm UV Flashlight in Forensics

• Non-destructive: Can help detect important evidence without damaging the scene.
• Highly Effective: Able to reveal hidden bodily fluids or trace evidence that might otherwise go unnoticed.
• Portable: Easy to carry and use in various locations, from crime scenes to forensic labs.

Common Forensic Applications

Comparing 365nm UV Flashlights for Leak Detection and Forensic Applications

Conclusion

A 365nm UV flashlight is an indispensable tool for both leak detection and forensic applications. Whether you’re looking for a hidden fluid leak or searching for crucial evidence at a crime scene, this flashlight can help you uncover what would otherwise remain unseen. By following the tips and guidelines provided, you can efficiently use this tool to address both professional and personal needs.

If you're ready to invest in a 365nm UV flashlight, remember to choose a model with the right features based on your specific use case. For forensic applications, look for a compact, powerful model with long battery life. For leak detection, focus on a flashlight that provides a wider beam and a durable design.
